ELG短量程,檢測距離=0...2m/光束距離30mm
分辨率10毫米起
發貨包括固定架
ELG1-0150P571 1028333
ELG1-0150P533 1026809
ELG1-0150P531 1026741
ELG1-0100P533 1026808
ELG1-0100P531 1026807
ELG長量程,檢測距離=0...12m/光束距離60mm
通過電位計進行靈敏度調節
工業標準輸出
ELG3-0930R523 1026537
ELG3-0570P521 1025885
ELG3-1890P523 1026826
ELG3-1890R121 1026180
ELG3-0930R521 1025449
ELG3-0930R221 1026176
ELG3-0930R121 1025785
ELG3-0450R221 1024268
ELG3-2370P523 1026178
ELG3-2370P521 1025573
ELG3-2070P523 1025572
ELG3-2070P521 1025505
ELG3-1890P521 1025504
ELG3-1890N521 1025621
ELG3-1650P521 1025503
ELG3-1650N521 1025620
ELG3-1410P523 1026179
ELG3-1410P521 1025502
ELG3-1410N521 1025618
ELG3-1170P521 1025579
ELG3-1170N521 1025617
ELG3-1050P521 1025570
ELG3-0930P521 1025511
ELG3-0930N521 1025616
ELG3-0810P523 1026177
ELG3-0810P521 1025577
ELG3-0690P521 1025568
ELG3-0690N521 1025615
ELG3-0450P521 1025440
ELG3-0450N521 1025614
ELG3-0210P521 1025574
ELG3-0210N521 1025613
ELG3-0150P521 1026475
ELG3-0930P511 1025492
ELG3-0690P511 1025499
ELG3-0570P511 1025501
ELG3-0450P511 1025490
ELG3-0330P513 1025576
ELG3-0330P511 1025575
ELG3-0210P513 1025438
ELG3-0210P511 1025510
ELG3-0150P513 1025578
ELG3-0090P513 1025443
ELG長量程,檢測距離=0...12m/光束距離60mm
ELG6-1860R523 1026458
ELG6-2460R521 1026183
ELG6-1860R521 1026182
ELG6-1380R523 1025451
ELG6-0900R523 1025453
ELG6-0900R521 1026181
ELG6-2460P523 1024293
ELG6-2340P521 1025596
ELG6-2040P523 1025594
ELG6-1860P523 1025593
ELG6-1860P521 1025589
ELG6-1380P523 1025588
ELG6-1380P521 1025587
ELG6-1080P521 1025586
ELG6-0900P521 1025447
PLG3-420F431 1029132
PLG3-360F431 1029131
PLG3-270F431 1029130
PLG3-210F431 1028548
PLG3-120F431 1028953

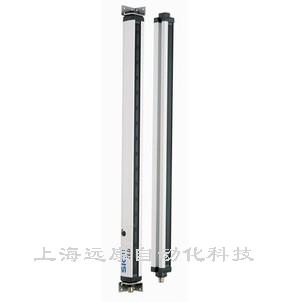

| Standard automation light grids |
| ELG |
| |
| Model Name |
ELG6-1380P521 |
| Part No. |
1025587 |
| |
|
At a glance
| |
Different beam resolutions 30 mm and 60 mm |
| |
High functional reserve (gain) for ranges up to 12 m |
| |
Potentiometer for sensitivity setting |
| |
Ambient light up to 150,000 lx |
| |
PNP/NPN, relay output and a test input |
Your benefits
| |
Insensitive to ambient light when exposed to direct sunlight, strobe lights, and highly reflective objects, eliminating false trips |
| |
High functional reserve (excess gain) ensures operation even if it gets dirty, dusty, or misaligned, reducing maintenance costs |
| |
Efficient and effective way to combine multiple sensors in one housing with one connector |
| |
Simple commissioning thanks to a larger optical aperture angle and manual fine adjustment option |
| |
Optical synchronization enables quick installation and cost-effective connection |
| |
The sensitivity adjustment can be used to detect or ignore translucent materials to reduce production problems | |
| |
   | |
|
| |
| Features |
 |
Technology: |
Transmitter / receiver |
|
|
Task: |
Switching light grid |
|
|
Beam separation: |
60 mm |
|
|
Number of beams: |
24 |
|
|
Detection height: |
1,380 mm |
|
| Performance |
|
Working range: |
12 m |
|
|
Maximum scanning range: |
17 m |
|
|
Minimal scanning range: |
>=0 mm |
|
|
Response time |
parallel beam: >=100 ms1) |
|
|
1)With resistive load |
|
| Interfaces |
|
Switching output: |
1 x PNP Q & Q invertiert |
|
|
Connection type: |
Connector M12, 4-pin |
|
|
Test input: |
PNP |
|
| Mechanics/electronics |
|
Wave length: |
880 nm |
|
|
Supply voltage VS |
DC 15 V 30 V1) |
|
|
Power consumption sender |
> 100 mA2) |
|
|
Power consumption receiver |
> 100 mA3) |
|
|
Ripple: |
> 10 Vpp |
|
|
Output current Imax.: |
100 mA |
|
|
Output load capacitive: |
100 μF |
|
|
Output load inductive: |
1 H |
|
|
Initialization time: |
1 s |
|
|
Dimensions (W x H x D): |
34 mm x 1,456 mm x 29 mm |
|
|
Housing material: |
Aluminum |
|
|
Indication: |
LED |
|
|
Synchronization: |
optical |
|
|
Enclosure rating: |
IP 65 |
|
|
Circuit protection: |
Output Q short-circuit protected, Interference suppression, VS connections reverse-polarity protected |
|
|
Weight: |
3,700 g |
|
|
Front screen: |
PMMA |
|
|
Pulse rate: |
250 kHz |
|
|
1)2)3)Typical value |
|
| Ambient data |
|
Protection class: |
III |
|
|
EMC: |
EN 60947-5-2 |
|
|
Ambient temperature: |
Operation: -25 ... 55 °C
Storage: -40 ... 70 °C |
|
|
Ambient light safety |
indirect: ≤ 150,000 klx1) |
|
|
Vibration resistance: |
5 g, 10 Hz ... 55 Hz, IEC 68-2-6 |
|
|
Shock resistance: |
10 g / IEC 68-2-29 / 16 ms |
|
|
1)Sunlight |
